Product Details
Panel Size 16.5" Resolution 1366*286
Brightness 700 (Typ.) Operating Temp. 0~50℃
Active Area 409.8*86mm Outline Dimension 437.8*114*15mm
Name Bar Type LCD Display
Leave a Message
Product Description

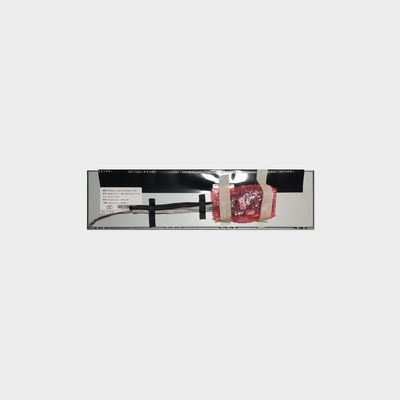

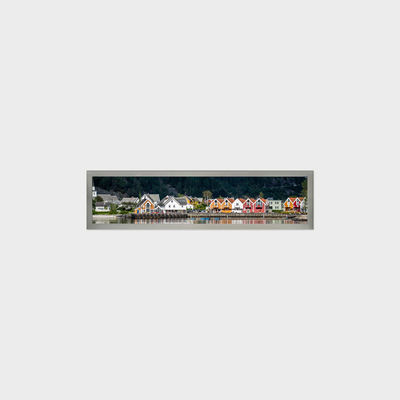

16.5 inch Bar Type LCD Display 1366*286 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

16.5 inch Bar Type LCD Display 1366*286 LVDS 700nits 0 16.5 inch Bar Type LCD Display 1366*286 LVDS 700nits 1 16.5 inch Bar Type LCD Display 1366*286 LVDS 700nits 2 16.5 inch Bar Type LCD Display 1366*286 LVDS 700nits 3

Specifications ?

LCMA-RX0165TB01-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   16.5 inch
  Model
   LCMA-RX0165TB01-C070
  Brightness
   700
  Power Consumption
   7 W
  Resolution
   1366*286
  Active Area
   409.8*86mm
  Overall Size
   437.8*114*15 mm
  Viewing Angle
   /
  Interface Definition
   LVDS (1 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:3.36
  Touch Panel   Without
  Operating Temperature
   0~50 ℃
