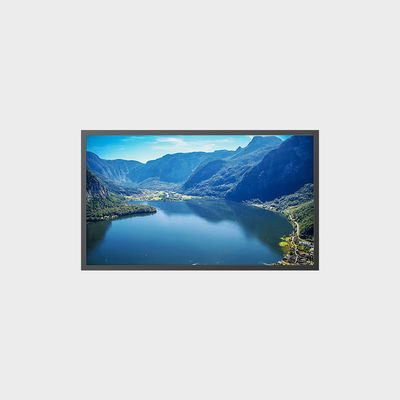

LVDS LCD Display 24 Inch LCD Screen Advertising Outdoor 1920*1080 LVDS 1000nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0240GA01-C100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 36w High Brightness LCD Display Panel Size 24"
Resolution 1920*1080 Brightness 1000 (Typ.)
Operating Temperature -20~70℃ Outline Dimension 556*323.2*17mm
Active Area 531.36*298.89mm
Highlight

LVDS LCD Display 24 Inch

,

24 Inch LCD Screen Advertising Outdoor

,

LCD Screen Advertising Outdoor 1000nits
Leave a Message
Product Description

24 inch High Brirghtness LCD Display 1920*1080 LVDS 1000nits



Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ?

1.Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
LVDS LCD Display 24 Inch LCD Screen Advertising Outdoor 1920*1080 LVDS 1000nits 0 LVDS LCD Display 24 Inch LCD Screen Advertising Outdoor 1920*1080 LVDS 1000nits 1 LVDS LCD Display 24 Inch LCD Screen Advertising Outdoor 1920*1080 LVDS 1000nits 2 LVDS LCD Display 24 Inch LCD Screen Advertising Outdoor 1920*1080 LVDS 1000nits 3

Specifications ?

LCMA-RX0240GA01-C100

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size
   24 inch
  Model
   LCMA-RX0240GA01-C100
  Brightness
   1000
  Power Consumption
   36 W
  Resolution
   1920*1080
  Active Area
   531.36*298.89mm
  Overall Size
   556*323.2*17mm
  Viewing Angle
   89/89/89/89
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   5000:1
  Aspect Ratio
   16:9
  Touch Panel   Without
  Operating Temperature
   -20~70℃



? Product catalog of high brightness LCD display.pdf...
