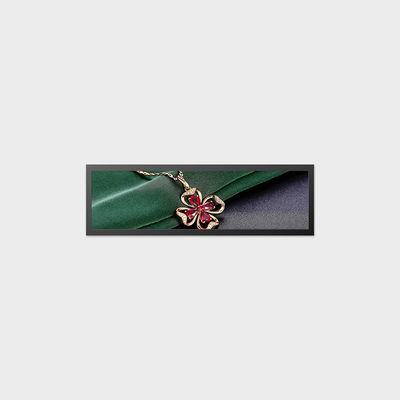

19.43 Inch Bar Type LCD Display 1920*519 LVDS 700nits Bar LCD Panel

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX1943TA01-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 19.43" Resolution 1920*519
Brightness 700 (Typ.) Operating Temp. 0~50℃
Active Area 476.64*128.9mm Outline Dimension 500*156.84*13.5mm
Name Bar Type LCD Display
Highlight

19.43 Inch Bar Type LCD Display

,

Bar Type LCD Display 1920*519

,

700nits Bar LCD Panel
Leave a Message
Product Description

19.43 inch Bar Type LCD Display 1920*519 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

19.43 Inch Bar Type LCD Display 1920*519 LVDS 700nits Bar LCD Panel 0 19.43 Inch Bar Type LCD Display 1920*519 LVDS 700nits Bar LCD Panel 1 19.43 Inch Bar Type LCD Display 1920*519 LVDS 700nits Bar LCD Panel 2 19.43 Inch Bar Type LCD Display 1920*519 LVDS 700nits Bar LCD Panel 3

Specifications ?

LCMA-RX1943TA01-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   19.43 inch
  Model
   LCMA-RX1943TA01-C070
  Brightness
   700
  Power Consumption
   11.5W
  Resolution
   1920*519
  Active Area
   476.64*128.9mm
  Overall Size
   500*156.84*13.5mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   3000:1
  Aspect Ratio
   16:4.32
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



? Product catalog of bar type LCD display.pdf
