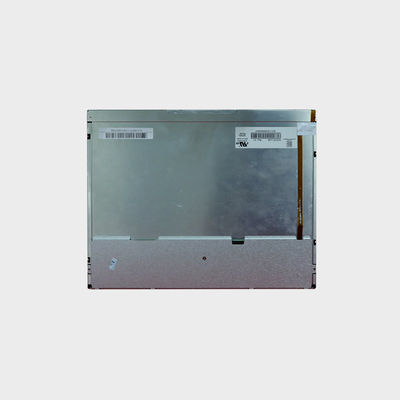

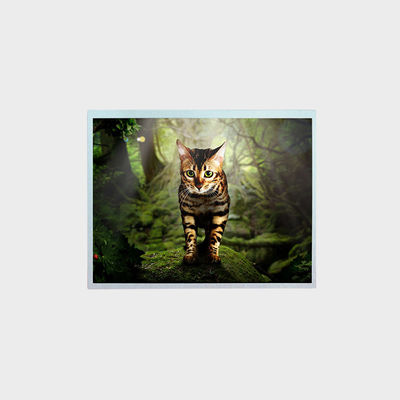

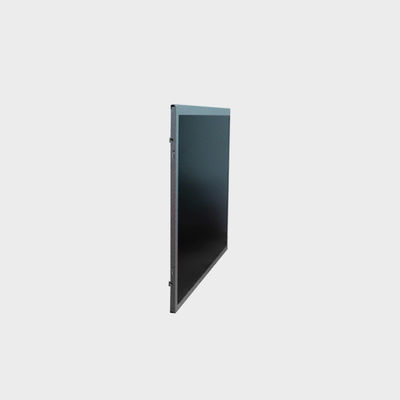

12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0121GR01-C100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 12.1" Resolution 1024*768
Brightness 1000 (Typ.) Aspect Ratio 4:3
Active Area 245.76*184.32mm (A.A) Outline Dimension 260.5*204*8.46mm
Highlight

12.1 Inch High Brightness LCD Display

,

High Brightness LCD Display 1024*768

,

Bus Station Display 1000 Nits
Leave a Message
Product Description

12.1 inch High Brirghtness LCD Display 1024*768 LVDS 1000nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

Product Application ?

1. Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 0 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 1 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 2 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 3

Specifications ?

LCMA-RX0121GI01-C150

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   12.1
  Model
   LCMA-RX0121GR01-C100
  Brightness
   1000
  Power Consumption (W)
   12
  Resolution
   1024*768
  Active Area
   245.76*184.32
  Overall Size
   260.5*204*8.46
  Viewing Angle
   88/88/88/88
  Interface Definition
   LVDS (1 ch, 6/8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   4:3
  Touch Panel   Without
  Operating Temperature
   -30~80℃



? Product catalog of high brightness LCD display.pdf...
