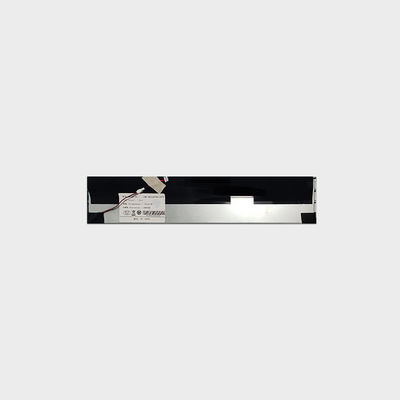

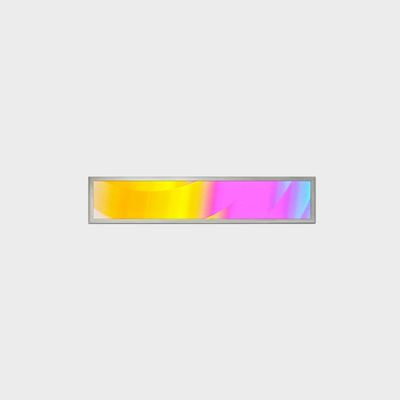

14.9 inch Bar Type Screen 1028*204 LVDS 700nits High Brightness LCD Display

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0149TB03-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Bar Type Screen Panel Size 14.9"
Resolution 1028*204 Brightness 700 (Typ.)
Operating Temp. 0~50℃ Active Area 374.78*60mm (A.A)
Outline Dimension 399.78*81*12.88mm
Highlight

14.9 inch Bar Type Screen

,

Bar Type Screen 1028*204

,

700nits High Brightness LCD Display
Leave a Message
Product Description

14.9 inch Bar Type LCD Display 1028*204 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.
14.9 inch Bar Type Screen 1028*204 LVDS 700nits High Brightness LCD Display 0 14.9 inch Bar Type Screen 1028*204 LVDS 700nits High Brightness LCD Display 1 14.9 inch Bar Type Screen 1028*204 LVDS 700nits High Brightness LCD Display 2 14.9 inch Bar Type Screen 1028*204 LVDS 700nits High Brightness LCD Display 3

Specifications ?

LCMA-RX0149TB03-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size(inch)
   14.9
  Model
   LCMA-RX0149TB03-C070
  Brightness
   700
  Power Consumption (W)
   7
  Resolution
   1028*204
  Active Area
   374.78*60
  Overall Size
   399.78*81*12.88
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   5:0.8
  Touch Panel   Without
  Operating Temperature
   0~50℃



? Product catalog of bar type LCD display.pdf
