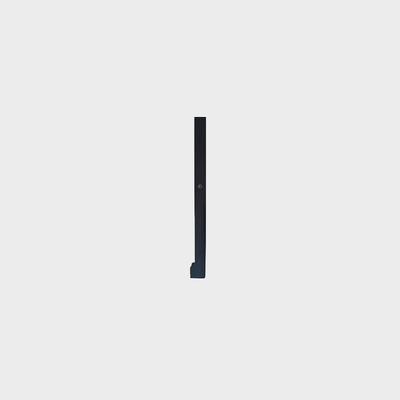

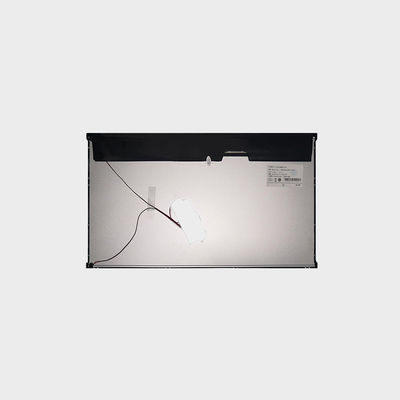

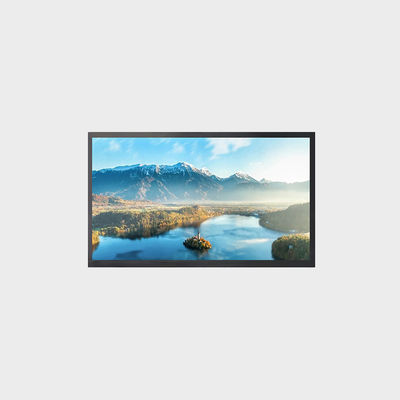

21.5 Inch High Brightness LCD Display Board 1920*1080 LVDS 1500 Nits Display

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0215GB08-C150
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 21.5" Resolution 1920*1080
Brightness 1500 (Typ.) Operating Temperature -20~70℃
Active Area 476.64*268.11mm (A.A) Outline Dimension 502.8*299.18*16mm
Name High Brightness LCD Display
Highlight

21.5 Inch High Brightness LCD Display

,

High Brightness LCD Display Board

,

LVDS 1500 Nits Display
Leave a Message
Product Description

21.5 inch High Brirghtness LCD Display 1920*1080 LVDS 1500nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ?

1.Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
21.5 Inch High Brightness LCD Display Board 1920*1080 LVDS 1500 Nits Display 0 21.5 Inch High Brightness LCD Display Board 1920*1080 LVDS 1500 Nits Display 1 21.5 Inch High Brightness LCD Display Board 1920*1080 LVDS 1500 Nits Display 2 21.5 Inch High Brightness LCD Display Board 1920*1080 LVDS 1500 Nits Display 3

Specifications ?

LCMA-RX0215GB08-C150

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size
   21.5 inch
  Model
   LCMA-RX0215GB08-C150
  Brightness
   1500
  Power Consumption
   57.4 W
  Resolution
   1920*1080
  Active Area
   476.64*268.11 mm
  Overall Size
   502.8*299.18*16 mm
  Viewing Angle
   89/89/89/89
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:9
  Touch Panel   Without
  Operating Temperature
   -20~70℃
