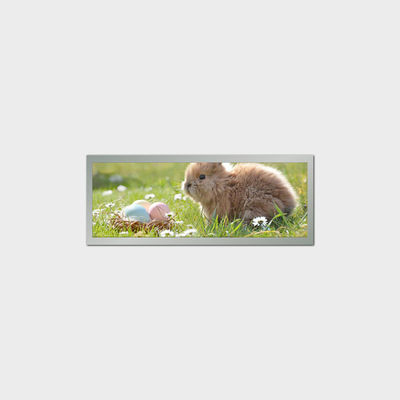

Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX090H-0100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 9" Resolution 1280*448
Brightness 500 (Typ.) Active Area 216.96*76mm
Outline Dimension 228*90*13mm Name Bar Type LCD Display
Highlight

Bar Type 9 Inch LCD Display

,

9 Inch LCD Display Screen

,

Public Transportation 9 Inch LCD Display
Leave a Message
Product Description

9 inch Bar Type LCD Display 1280*448 LVDS 500nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation 0 Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation 1 Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation 2 Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation 3

Specifications ?

LCMA-RX090H-0100

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size(inch)
   9
  Model
   LCMA-RX090H-0100
  Brightness
   500
  Power Consumption (W)
   2.52
  Resolution
   1280*448
  Active Area
   216.96*76mm
  Overall Size
   228*90*13mm
  Viewing Angle
   /
  Interface Definition
   LVDS (1 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio

  Touch Panel   Without
  Operating Temperature
   -10~50℃



? Product catalog of bar type LCD display.pdf
