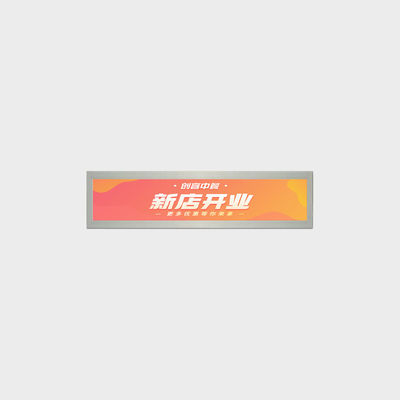

Bar Type 15 Inch LCD Display Panel 1280*248 LVDS 300 Nits Display High Brightness

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0150TB01-C030
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 15" Resolution 1280*248
Brightness 300 (Typ.) Active Area 374.78*72.61mm
Outline Dimension 396*100.8*12.58mm Name Bar Type LCD Display
Highlight

Bar Type 15 Inch LCD Display Panel

,

High Brightness LCD Display 15 Inch

,

300 Nits Display High Brightness
Leave a Message
Product Description

15 inch Bar Type LCD Display 1280*248 LVDS 300nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

Bar Type 15 Inch LCD Display Panel 1280*248 LVDS 300 Nits Display High Brightness 0 Bar Type 15 Inch LCD Display Panel 1280*248 LVDS 300 Nits Display High Brightness 1 Bar Type 15 Inch LCD Display Panel 1280*248 LVDS 300 Nits Display High Brightness 2 Bar Type 15 Inch LCD Display Panel 1280*248 LVDS 300 Nits Display High Brightness 3

Specifications ?

LCMA-RX0150TB01-C030

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size(inch)
   15
  Model
   LCMA-RX0150TB01-C030
  Brightness
   300
  Power Consumption (W)
   7
  Resolution
   1280*248
  Active Area
   374.78*72.61mm
  Overall Size
   396*100.8*12.58mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   5:0.95
  Touch Panel   Without
  Operating Temperature
   (0-50)



? Product catalog of bar type LCD display.pdf
