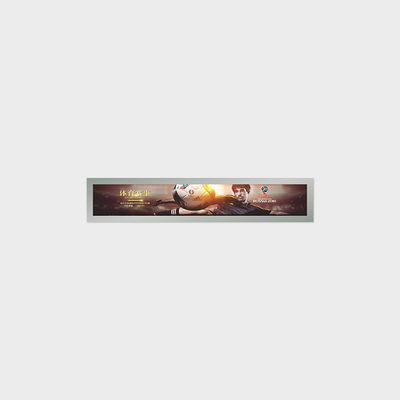

16.3 Inch Bar Type Taxi Advertising Display 1920*285 LVDS 800nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0163TA01-C080
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Taxi Advertising Display Panel Size 16.3"
Resolution 1920*285 Brightness 800 (Typ.)
Active Area 408.96*60.705mm Outline Dimension 432*85*14.8mm
Highlight

16.3 Inch Taxi Advertising Display

,

Bar Type Taxi Advertising Display

,

Taxi Advertising Display 1920*285
Leave a Message
Product Description

16.3 inch Bar Type LCD Display 1920*285 LVDS 800nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

16.3 Inch Bar Type Taxi Advertising Display 1920*285 LVDS 800nits 0 16.3 Inch Bar Type Taxi Advertising Display 1920*285 LVDS 800nits 1 16.3 Inch Bar Type Taxi Advertising Display 1920*285 LVDS 800nits 2 16.3 Inch Bar Type Taxi Advertising Display 1920*285 LVDS 800nits 3

Specifications ?

LCMA-RX0163TA01-C080

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size(inch)
   16.3
  Model
   LCMA-RX0163TA01-C080
  Brightness
   800
  Power Consumption (W)
   12.5
  Resolution
   1920*285
  Active Area
   408.96*60.705mm
  Overall Size
   432*85*14.8mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:2.37
  Touch Panel   Without
  Operating Temperature
   -20~70℃



? Product catalog of bar type LCD display.pdf
