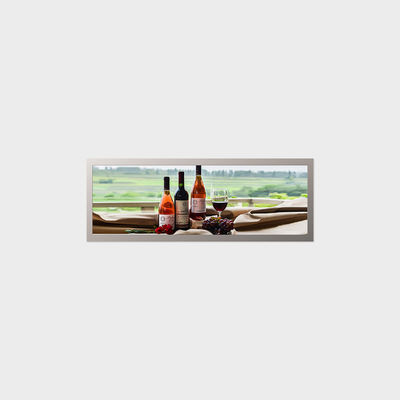

16.9 Inch Bar Type Taxi Advertising Screen 1920*624 LVDS 800nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0169TA01-C080
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Taxi Advertising Screen Panel Size 16.9"
Resolution 1920*624 Brightness 800 (Typ.)
Operating Temp. -20~70℃ Active Area 408.96*133mm
Outline Dimension 430.4*158.5*23.8mm
Highlight

16.9 Inch Taxi Advertising Screen

,

Bar Type Taxi Advertising Screen

,

Taxi Advertising Screen 800nits
Leave a Message
Product Description

16.9 inch Bar Type LCD Display 1920*624 LVDS 800nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

16.9 Inch Bar Type Taxi Advertising Screen 1920*624 LVDS 800nits 0 16.9 Inch Bar Type Taxi Advertising Screen 1920*624 LVDS 800nits 1 16.9 Inch Bar Type Taxi Advertising Screen 1920*624 LVDS 800nits 2 16.9 Inch Bar Type Taxi Advertising Screen 1920*624 LVDS 800nits 3

Specifications ?

LCMA-RX0169TA01-C080

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   16.9 inch
  Model
   LCMA-RX0169TA01-C080
  Brightness
   800
  Power Consumption
   13W
  Resolution
   1920*624
  Active Area
   408.96*133mm
  Overall Size
   430.4*158.5*23.8mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:5.2
  Touch Panel   Without
  Operating Temperature
   -20~70 ℃



? Product catalog of bar type LCD display.pdf
