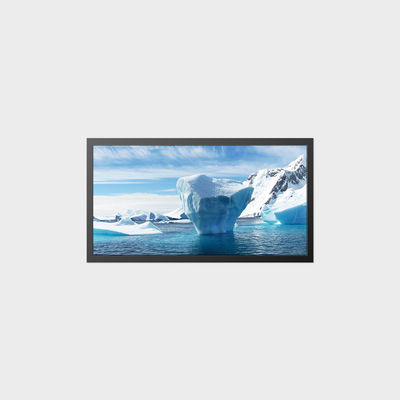

Anti Vibration 17 Inch LCD Display Bar Type 1280*658 LVDS 700 Nits Display For Taxi

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0170TB01-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 17 Inch LCD Display Panel Size 17"
Resolution 1280*658 Brightness 700 (Typ.)
Operating Temp. 0~50℃ Active Area 374.78*193mm
Outline Dimension 395.2*217.16*13.5mm
Highlight

17 Inch LCD Display Bar Type

,

Anti Vibration 17 Inch LCD Display

,

Taxi 700 Nits Display
Leave a Message
Product Description

17 inch Bar Type LCD Display 1280*658 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

Anti Vibration 17 Inch LCD Display Bar Type 1280*658 LVDS 700 Nits Display For Taxi 0 Anti Vibration 17 Inch LCD Display Bar Type 1280*658 LVDS 700 Nits Display For Taxi 1 Anti Vibration 17 Inch LCD Display Bar Type 1280*658 LVDS 700 Nits Display For Taxi 2 Anti Vibration 17 Inch LCD Display Bar Type 1280*658 LVDS 700 Nits Display For Taxi 3

Specifications ?

LCMA-RX0170TB01-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   17 inch
  Model
   LCMA-RX0170TB01-C070
  Brightness
   700
  Power Consumption
   12 W
  Resolution
   1280*658
  Active Area
   374.78*193mm
  Overall Size
   395.2*217.16*13.5 mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   5:2.574
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



? Product catalog of bar type LCD display.pdf
