28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits Advertising LCD Screen

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0288TA03-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Bar Type LCD Display Panel Size 28.8"
Resolution 1920*540 Brightness 700 (Typ.)
Operating Temp. -20~60℃ Active Area 698.4*196.43mm
Outline Dimension 735.8*233.8*18.1mm
Highlight

28.8 inch Bar Type LCD Display

,

Bar LCD Display 1920*540

,

700nits Advertising LCD Screen
Leave a Message
Product Description

28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

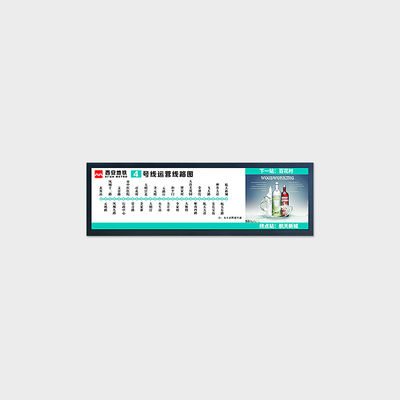

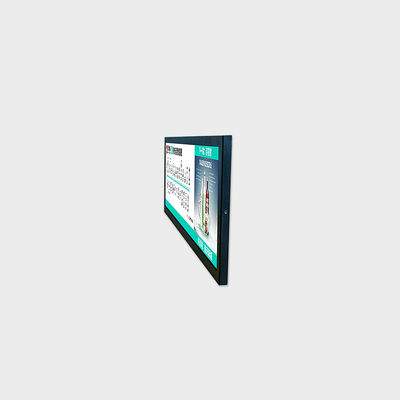

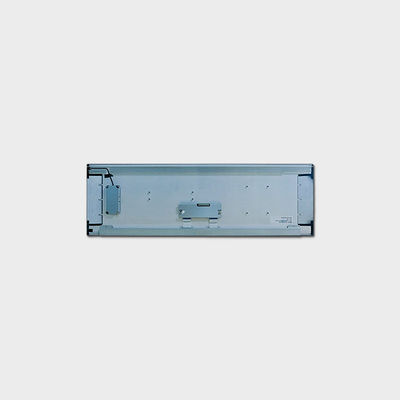

28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits Advertising LCD Screen 0 28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits Advertising LCD Screen 1 28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits Advertising LCD Screen 2 28.8 inch Bar Type LCD Display 1920*540 LVDS 700nits Advertising LCD Screen 3

Specifications ?

LCMA-RX0288TA03-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   28.8 inch
  Model
   LCMA-RX0288TA03-C070
  Brightness
   700
  Power Consumption
   28W
  Resolution
  1920*540
  Active Area
   698.4*196.43mm
  Overall Size
   735.8*233.8*18.1mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   4000:1
  Aspect Ratio
   16:4.5
  Touch Panel   Without
  Operating Temperature
   -20~60 ℃



? Product catalog of bar type LCD display.pdf
