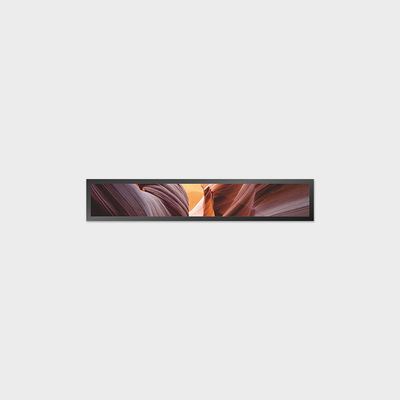

36.6 Inch Bar Type LCD Display 1920*290 LVDS 550nits For Advertising Board

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0366TB01-C055
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 36.6" Resolution 1920*290
Brightness 550 (Typ.) Operating Temp. -20~70℃
Active Area 919.3*139mm Outline Dimension 956.9*176.5*17.9mm
Name Bar Type LCD Display
Highlight

36.6 Inch Bar Type LCD Display

,

Bar Type LCD Display 1920*290

,

550nits Bar LCD Display
Leave a Message
Product Description

36.6 inch Bar Type LCD Display 1920*290 LVDS 550nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

36.6 Inch Bar Type LCD Display 1920*290 LVDS 550nits For Advertising Board 0 36.6 Inch Bar Type LCD Display 1920*290 LVDS 550nits For Advertising Board 1 36.6 Inch Bar Type LCD Display 1920*290 LVDS 550nits For Advertising Board 2 36.6 Inch Bar Type LCD Display 1920*290 LVDS 550nits For Advertising Board 3

Specifications ?

LCMA-RX0366TB01-C055

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   36.6 inch
  Model
   LCMA-RX0366TB01-C055
  Brightness
   550
  Power Consumption
   15W
  Resolution
  1920*290
  Active Area
   919.3*139mm
  Overall Size
   956.9*176.5*17.9mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:2.4
  Touch Panel   Without
  Operating Temperature
   -20~70 ℃



? Product catalog of bar type LCD display.pdf
