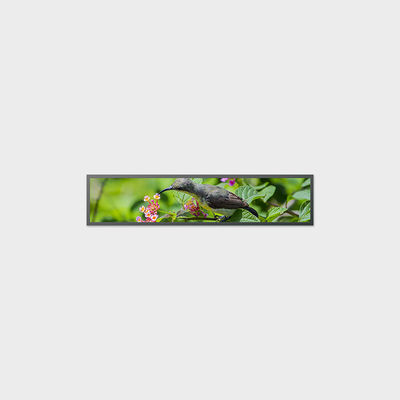

37.8 Inch Advertising LCD Display Bar Type 1920*387 LVDS 2000nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0378TL01-C200
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Advertising LCD Display Panel Size 37.8"
Resolution 1920*387 Brightness 2000 (Typ.)
Operating Temp. 0~50℃ Active Area 941.18*190mm
Outline Dimension 968.9*218*26.9mm
Highlight

37.8 Inch Advertising LCD Display

,

Advertising LCD Display Bar Type

,

Advertising LCD Display 2000nits
Leave a Message
Product Description

37.8 inch Bar Type LCD Display 1920*387 LVDS 2000nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

37.8 Inch Advertising LCD Display Bar Type 1920*387 LVDS 2000nits 0 37.8 Inch Advertising LCD Display Bar Type 1920*387 LVDS 2000nits 1 37.8 Inch Advertising LCD Display Bar Type 1920*387 LVDS 2000nits 2 37.8 Inch Advertising LCD Display Bar Type 1920*387 LVDS 2000nits 3

Specifications ?

LCMA-RX0378TL01-C200

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   37.8 inch
  Model
   LCMA-RX0378TL01-C200
  Brightness
   2000
  Power Consumption
   55.6W
  Resolution
  1920*387
  Active Area
   941.18*190mm
  Overall Size
   968.9*218*26.9mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1200:1
  Aspect Ratio
   16:3.23
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



? Product catalog of bar type LCD display.pdf
