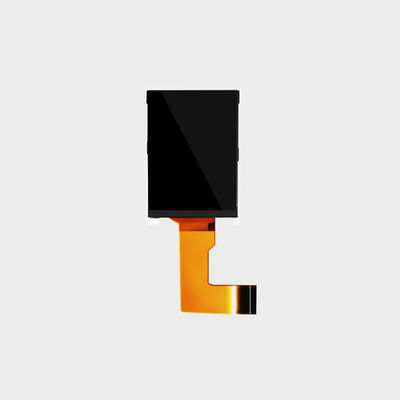

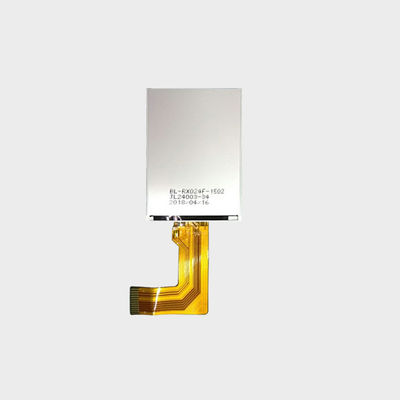

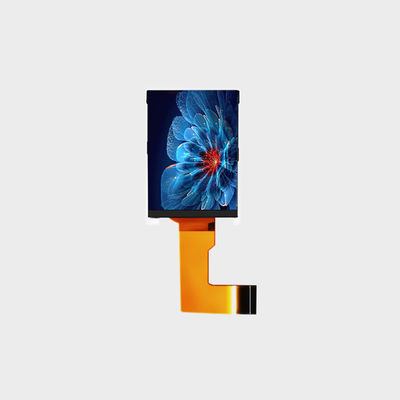

Car DVD 2.4 Inch LCD Display Screen 240(RGB) *320 SPI 300nits Display

Place of Origin Shenzhen
Brand Name ROGIN
Model Number RX024F-1502-B0
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 2.4 Inch LCD Display Panel Size 2.4"
Resolution 240(RGB) *320 Brightness 300 (Typ.)
Active Area 36.72*48.96mm Outline Dimension 42.72*60.26*2.30mm
Highlight

Car DVD 2.4 Inch LCD Display

,

2.4 Inch LCD Display Screen

,

SPI 300nits Display
Leave a Message
Product Description

2.4 inch Medium and Small LCD Display 240(RGB) *320 SPI 300nits

Product Advantage ?

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ?

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

Car DVD 2.4 Inch LCD Display Screen 240(RGB) *320 SPI 300nits Display 0 Car DVD 2.4 Inch LCD Display Screen 240(RGB) *320 SPI 300nits Display 1 Car DVD 2.4 Inch LCD Display Screen 240(RGB) *320 SPI 300nits Display 2 Car DVD 2.4 Inch LCD Display Screen 240(RGB) *320 SPI 300nits Display 3

Specifications ?

RX024F-1502-B0

 Brand  Rogin
 Series  Medium and Small Size LCD Display
 Panel Size  2.4inch
 Model  RX024F-1502-B0
 Brightness  300
 Resolution  240(RGB) *320 dots
 Interface  SPI
 Display area(AA)  36.72(H)*48.96(V) (2.4 inch) mm
 Overall size  42.72*60.26*2.30mm
 Driver element  a-Si TFT active matrix
 Display colors  262K colors
 Pixel arrangement  RGB vertical stripe
 Pixel pitch  0.153(H) *0.153(V)mm
 Viewing angle  12:00 o'clock
 Drive IC  ST7789V
 Display mode  Transmissive/ Normally White
 Operating temperature  -20~+70℃
 Storage temperature  -30~+80 ℃
