7.0 Inch Medium And Small LCD Display 800×480 RGB 250 Nits Screen

Place of Origin Shenzhen
Brand Name ROGIN
Model Number RX070I-3901
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 7.0" Resolution 800(RGB)*480
Brightness 250 (Typ.) Active Area 154.08(W) × 85.92(H) Mm
Outline Dimension 164.9(W) X100.0(H) X5.7(D) Mm Name Small LCD Display
Highlight

7.0 Inch Small LCD Display

,

250Nits Display

,

RGB 250 Nits Screen
Leave a Message
Product Description

7.0 inch Medium and Small LCD Display 800(RGB)×480 RGB 250nits

Product Advantage ?

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ?

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

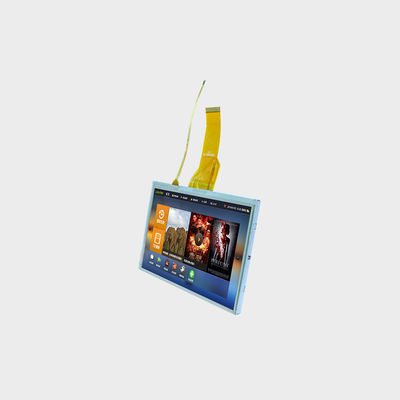

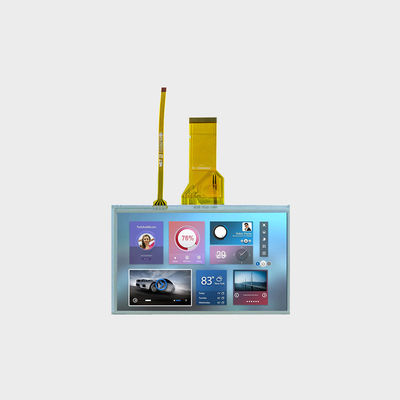

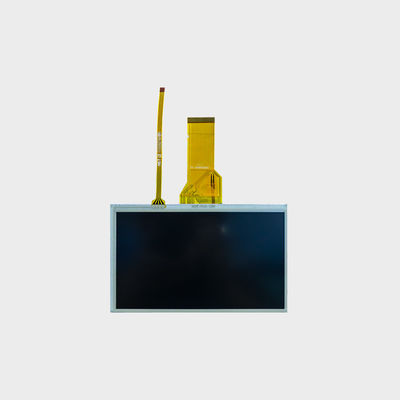

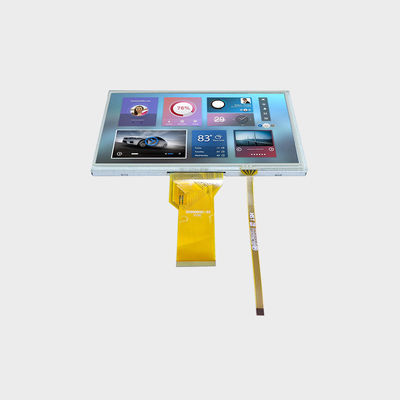

7.0 Inch Medium And Small LCD Display 800×480 RGB 250 Nits Screen 0 7.0 Inch Medium And Small LCD Display 800×480 RGB 250 Nits Screen 1 7.0 Inch Medium And Small LCD Display 800×480 RGB 250 Nits Screen 2 7.0 Inch Medium And Small LCD Display 800×480 RGB 250 Nits Screen 3

Specifications ?

RX070I-3901

 Brand  Rogin
 Series  Medium and Small Size LCD Display
 Panel Size  7.0inch
 Model  RX070I-3901
 Brightness  250 cd/m2
 Resolution  800(RGB)*480 dots
 Interface  RGB
 Display area(AA)  154.08(W) × 85.92(H) mm
 Overall size  164.9(W) x100.0(H) x5.7(D) mm
 Driver element  a-Si TFT active matrix
 Display colors  16.7M colors
 Pixel arrangement  RGB-stripe
 Pixel pitch  0.0642(W) × 0.1790(H) mm
 Viewing angle  /
 Drive IC  /
 Display mode  Transmissive/ Normally White
 Operating temperature  -20~+70℃
 Storage temperature  -30~+80 ℃
