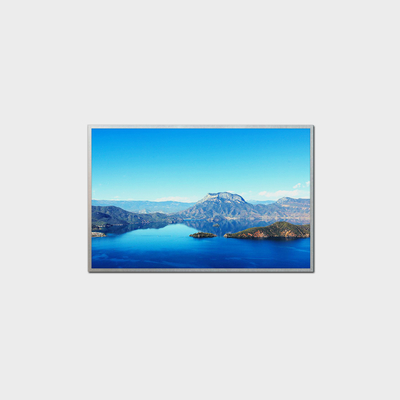

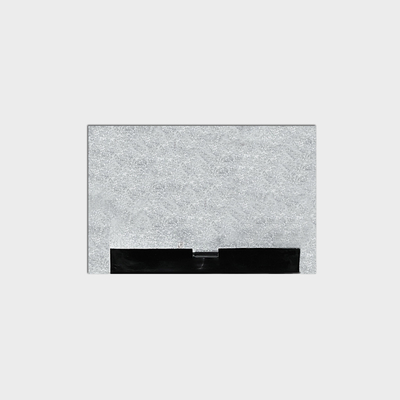

10.1 Inch High Brightness LCD Panel 1280*800 LVDS 1000nits LCMA-RX101B-1000

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0101GI02-C120
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Brightness LCD Display Panel Size 10.1"
Resolution 1280*800 Brightness 1000 (Typ.)
Aspect Ratio 16:10 Active Area 216.96*135.6mm
Outline Dimension 229.46*149.1*7.7mm
Leave a Message
Product Description

10.1 inch High Brirghtness LCD Panel 1280*800 1000nits

Product Features ?

1. Brightness customization 700-5000cd/m2.
2. Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Aluminium backlight structure with good heat dissipation.
6. Wide temperature range up to -30°C-80°C.
7. High shock resistance and high stability.

Product Application ?

1.Bus Station Signage System.
2.Smart Charging Station.
3.Outdoor Electronic News Display.
4.Smart Parcel Delivery Locker.
5.Vending Machine.
6.Commercial Digital Signage.
7.Tourist Attraction Information Kiosk.
8.Community Bulletin Board.
10.1 Inch High Brightness LCD Panel 1280*800 LVDS 1000nits LCMA-RX101B-1000 0 10.1 Inch High Brightness LCD Panel 1280*800 LVDS 1000nits LCMA-RX101B-1000 1 10.1 Inch High Brightness LCD Panel 1280*800 LVDS 1000nits LCMA-RX101B-1000 2 10.1 Inch High Brightness LCD Panel 1280*800 LVDS 1000nits LCMA-RX101B-1000 3

Specifications ?

LCMA-RX101B-1000

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   10.1
  Model
   LCMA-RX101B-1000
  Brightness
   1000nits
  Resolution
   1280*800
  Active Area(mm)
   216.96*135.6
  Overall Size(mm)
   229.46*149.1*7.7
  Viewing Angle
   80/80/80/80
  Interface Definition
   LVDS (1 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:10
  Touch Panel   Without
  Operating Temperature
   -20-70℃
