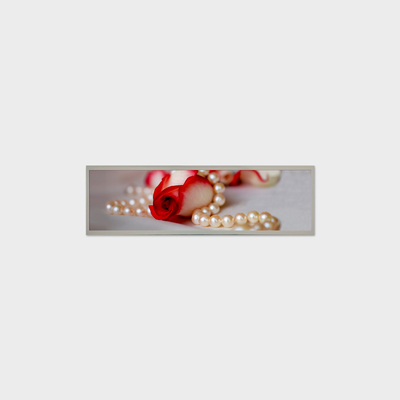

19.4 Inch Bar LCD Display Solution With 1000nits Brightness Support Outdoor Application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Bar Type LCD Display | Panel Size | 19.4" |
|---|---|---|---|
| Resolution | 1920*510 | Brightness | 1000 (Typ.) |
| Operating Temp. | 0~50℃ | Active Area | 476.64*126.6mm |
| Outline Dimension | 495.6*150.7*12mm | ||
| Highlight | 19.4 inch bar LCD display,outdoor bar LCD display 1000nits,high brightness bar type LCD |
||
Product Description
19.4 Inch Bar LCD Display Solution With 1000nits Brightness Support Outdoor Application
Product Advantage ?
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application ?
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications ?
LCMA-RX0194TA03-C100
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 19.4 inch |
| Model | LCMA-RX0194TA03-C100 |
| Brightness | 1000 |
| Resolution | 1920*510 |
| Active Area | 476.64*126.6mm |
| Overall Size | 495.6*150.7*12mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
