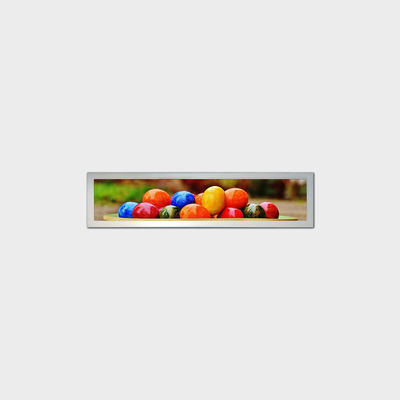

13.8 Inch Bar LCD Display 1920*358 Resolution 700nits LCD Screen Support Full Customization
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Bar LCD Display | Panel Size | 19.5" |
|---|---|---|---|
| Resolution | 1920*358 | Brightness | 700 (Typ.) |
| Operating Temp. | 0~50℃ | Active Area | 344.16*61.17mm |
| Outline Dimension | 371.5*90.1*12.7mm | ||
| Highlight | 13.8 inch bar LCD display,1920x358 resolution LCD screen,700nits brightness bar display |
||
Product Description
13.8 Inch Bar LCD Display 1920*358 Resolution 700nits LCD Screen Support Full Customization
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting)
- Advanced cutting technology to ensure the yield and precision
- High reliability with same features as original panel
- High Anti-vibration
- Brightness can be customized (500-2500nit)
- Long life time 50K hours(Typ), up to 80K hours
Product Applications
- Commercial signage: Advertising and Price Shelves
- Public transportation: Bill board for Bus/Metro and light rail
- Guidance board, Lift advertising board
- Financial services. Bank call notice board
- Name card
- Advertising board on taxi
Specifications
LCMA-RX0138TQ01-C070
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 13.8 inch |
| Model | LCMA-RX0138TQ01-C070 |
| Brightness | 700 |
| Resolution | 1920*536 |
| Active Area | 344.16*61.17mm |
| Overall Size | 371.5*90.1*12.7mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
